Papa Smurf

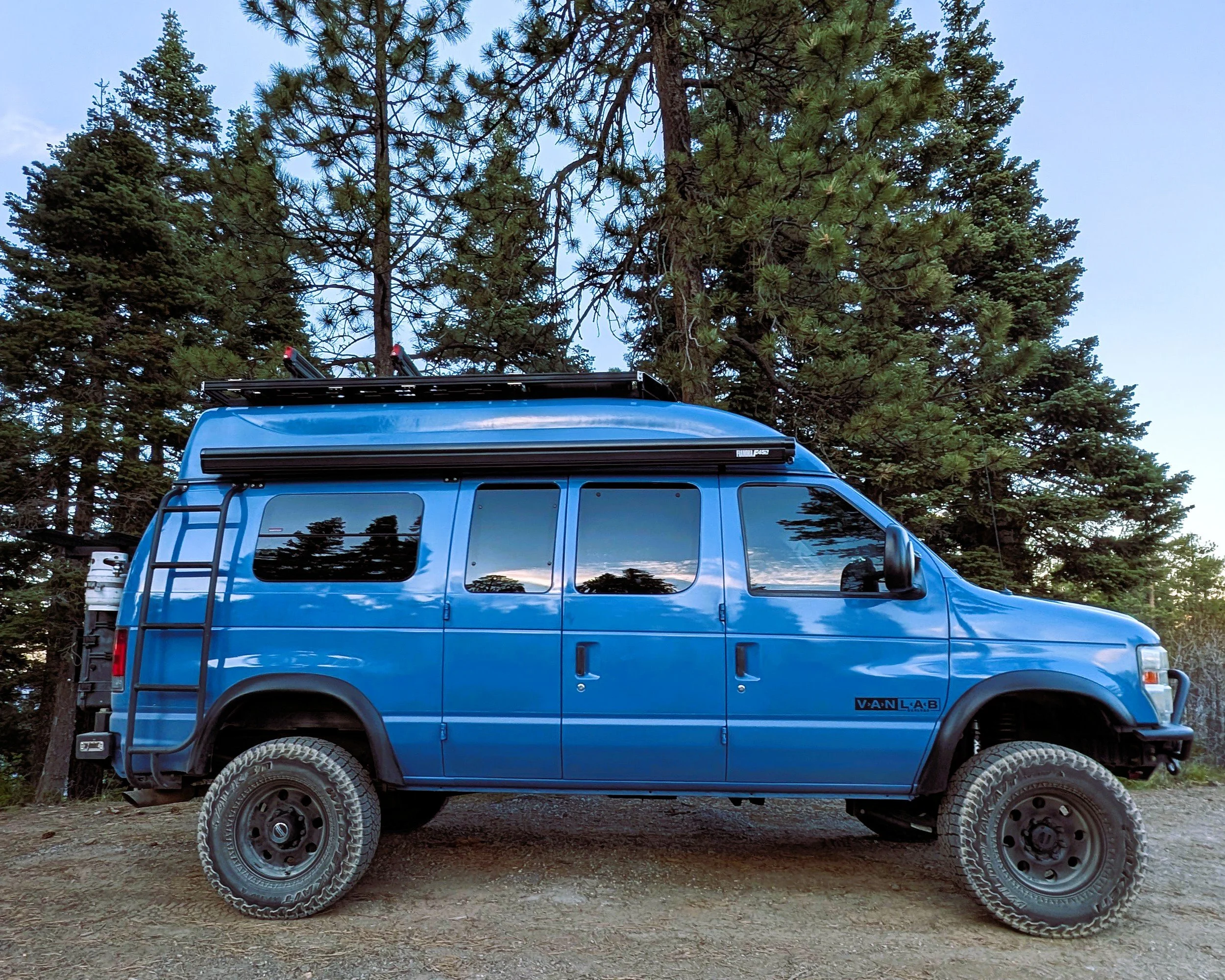

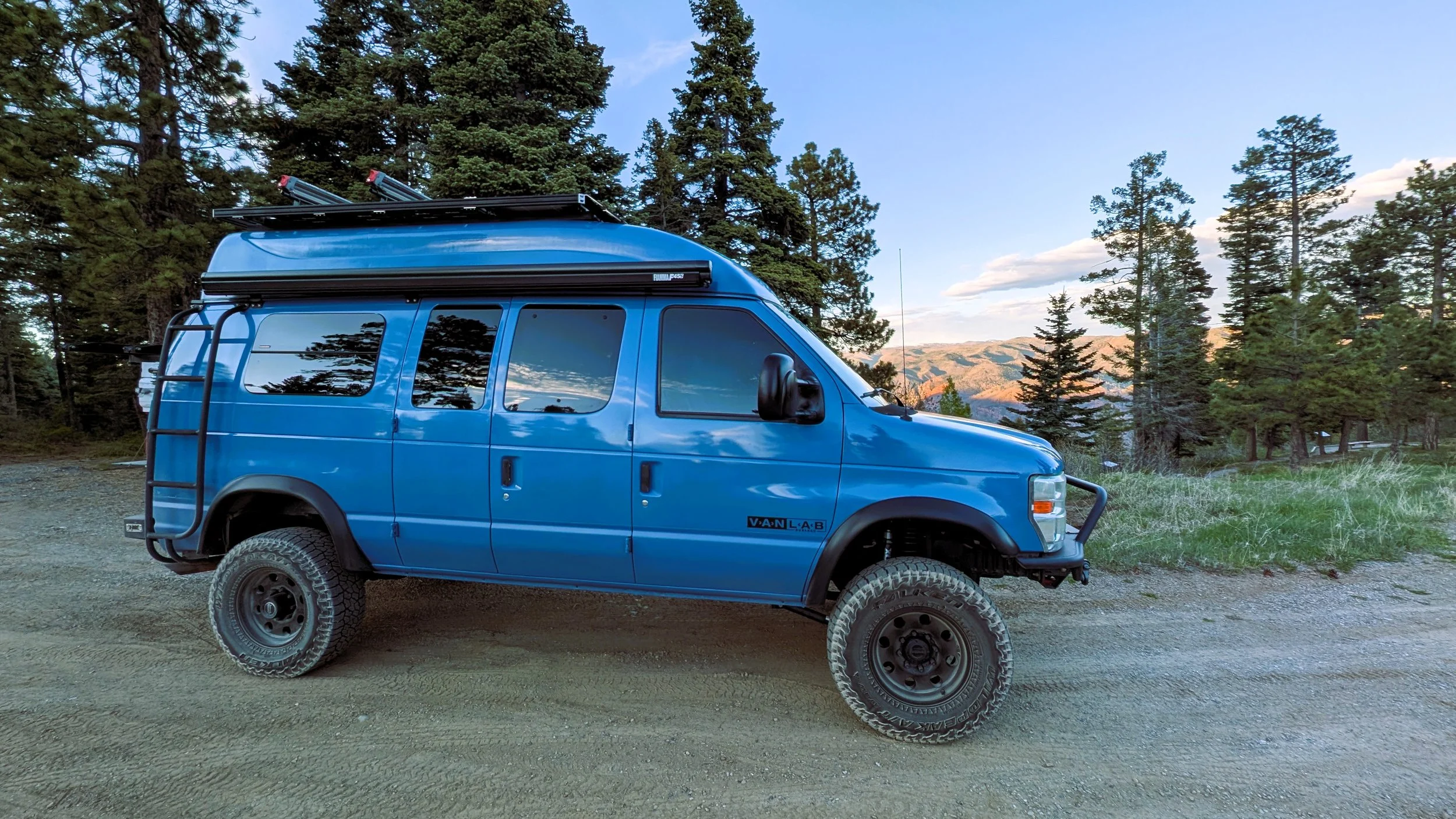

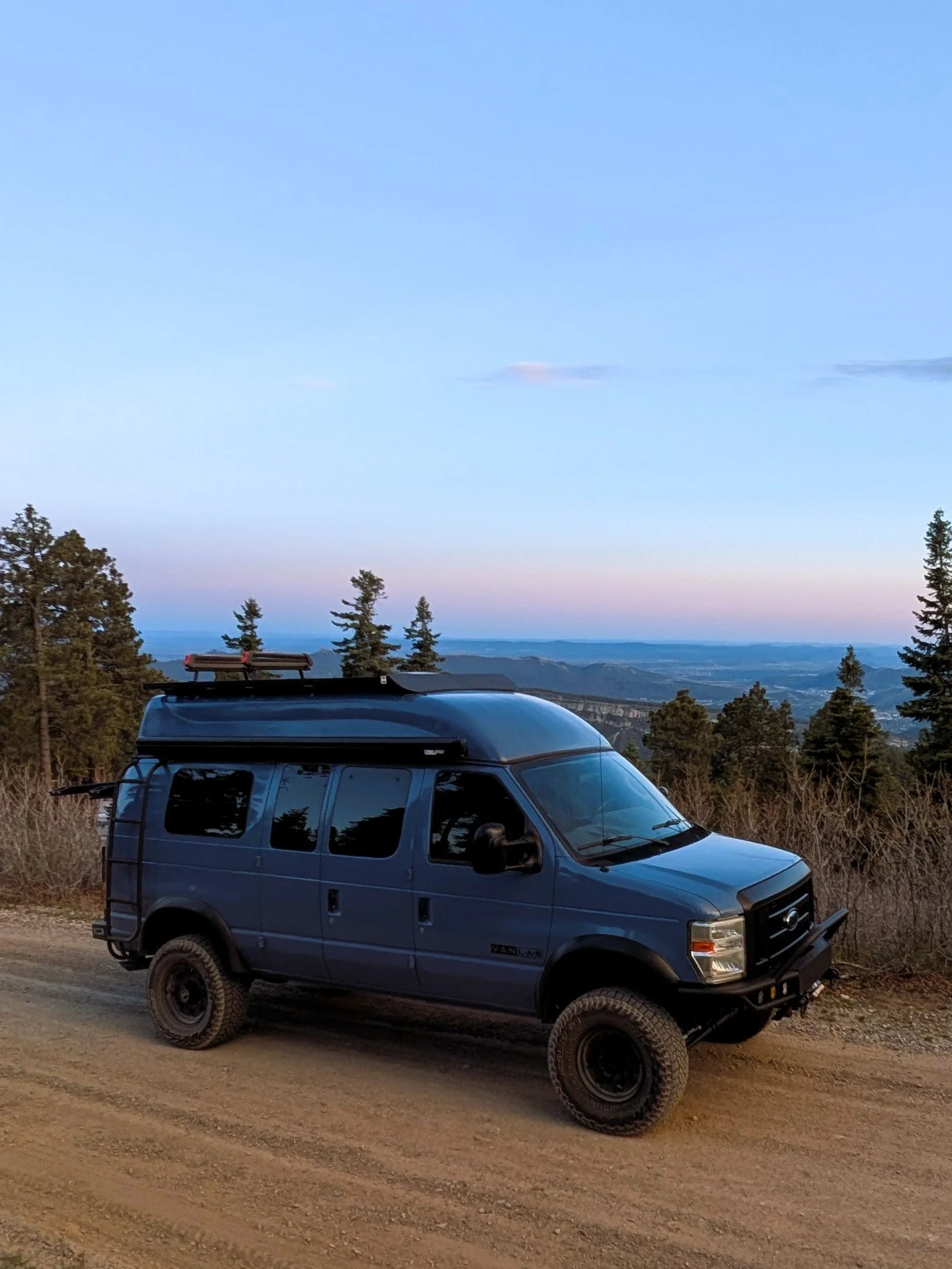

This is a true overlanders dream! built on the tried and true Ford e350 chassis and a quigley 4×4 conversion this is a “go-anywhere” adventure vehicle.

A seat 5, sleep 4 configuration with custom pop top, upgraded seating, suspension and exterior components. This van is used with only 55k on the odometer and full maintenance records and features a whole list of upgrades and build components.

Our shop is booked into November with new build appointments not done until 2027- this rig is available now.

Build Specs as Follows:

Chassis/Suspension/Exterior Goodies:

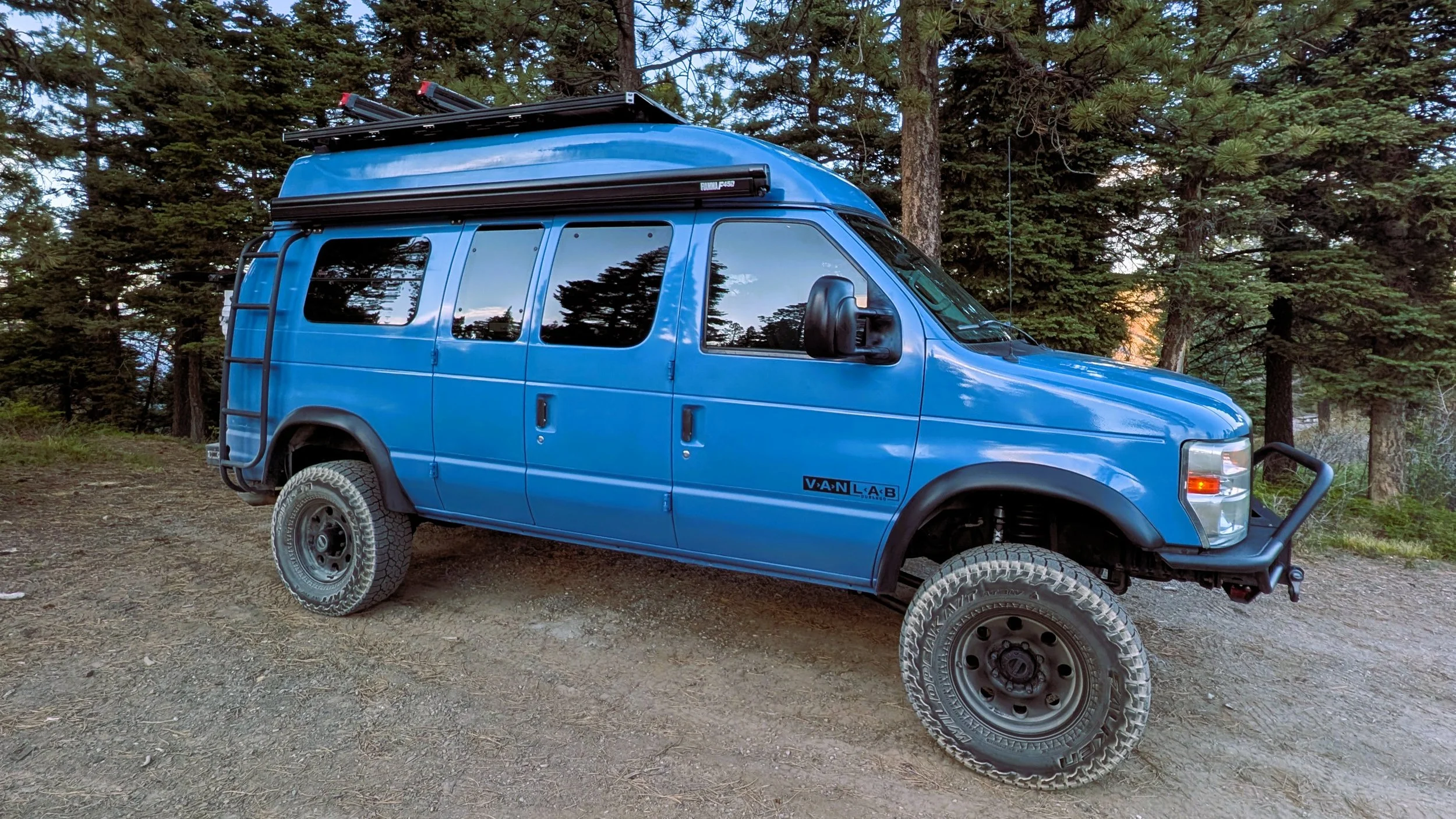

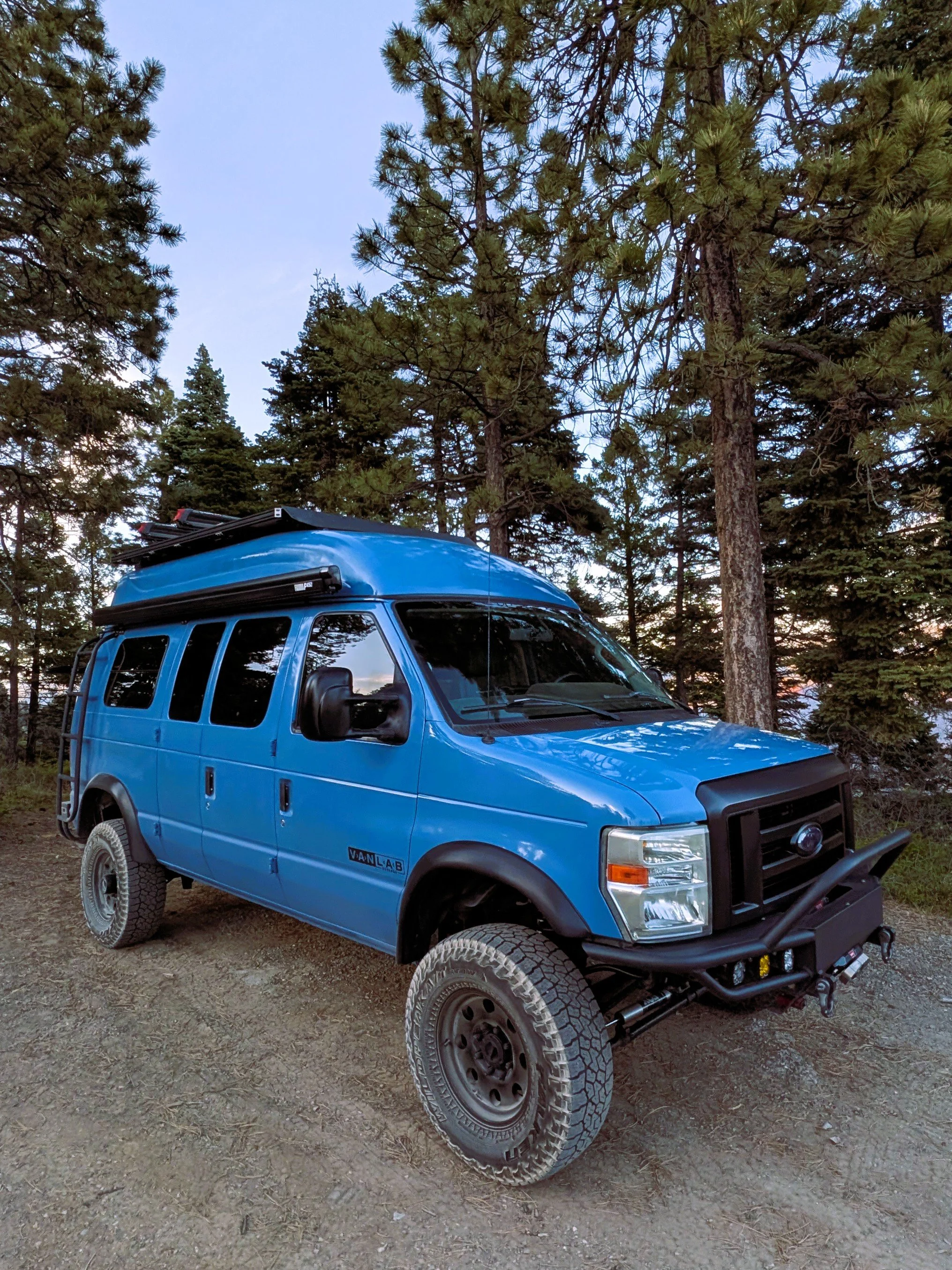

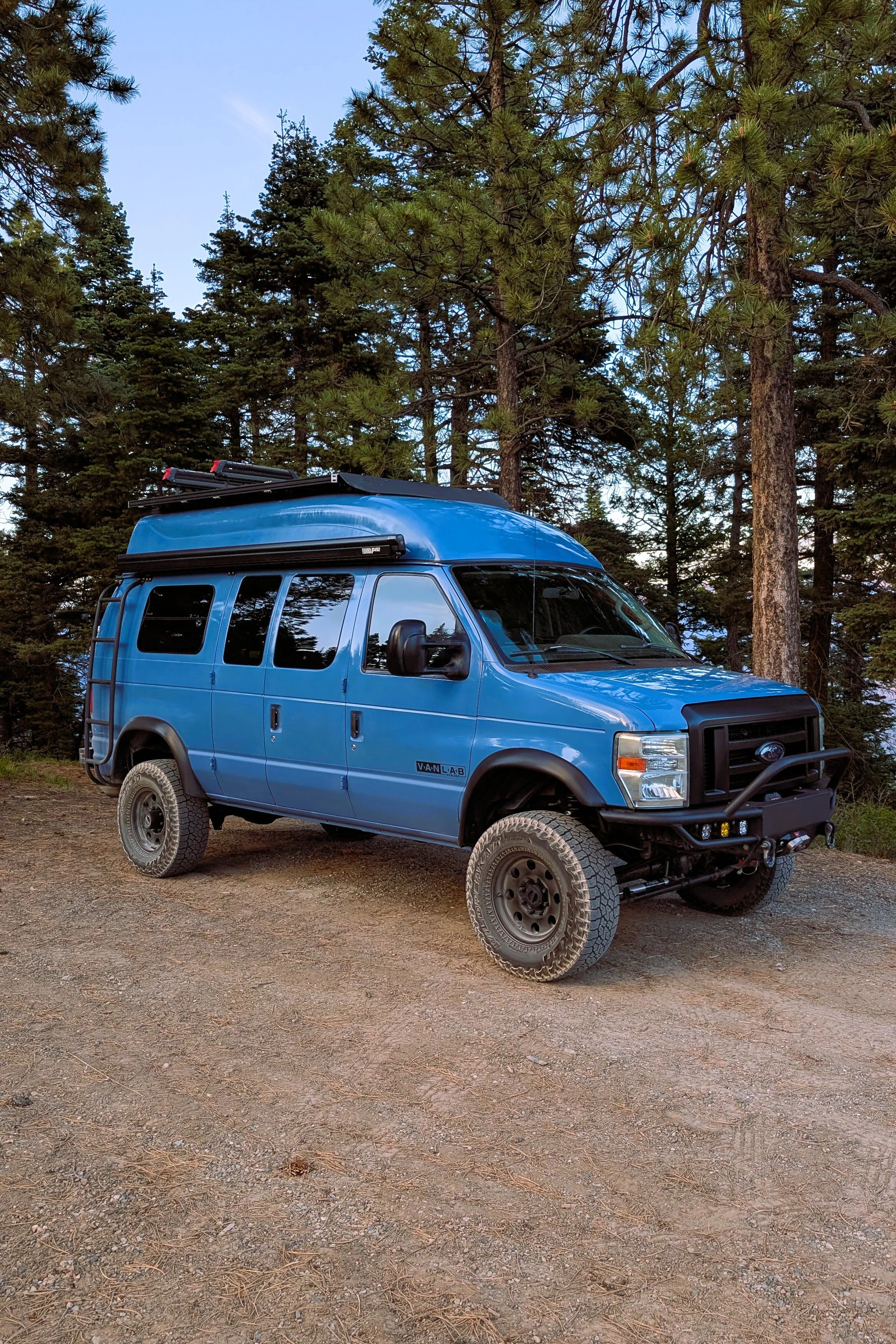

• 2011 Ford E350 - Quigley 4x4 Conversion

• v10 motor

• Agile RIP kit Installed Spring of 2023

• Custom Painted Toyota Calvary Blue with color matched Raptor liner rocker panels - Paints not perfect, this is a used adventure rig. It's got some scratches, rock chips, but overall looks great.

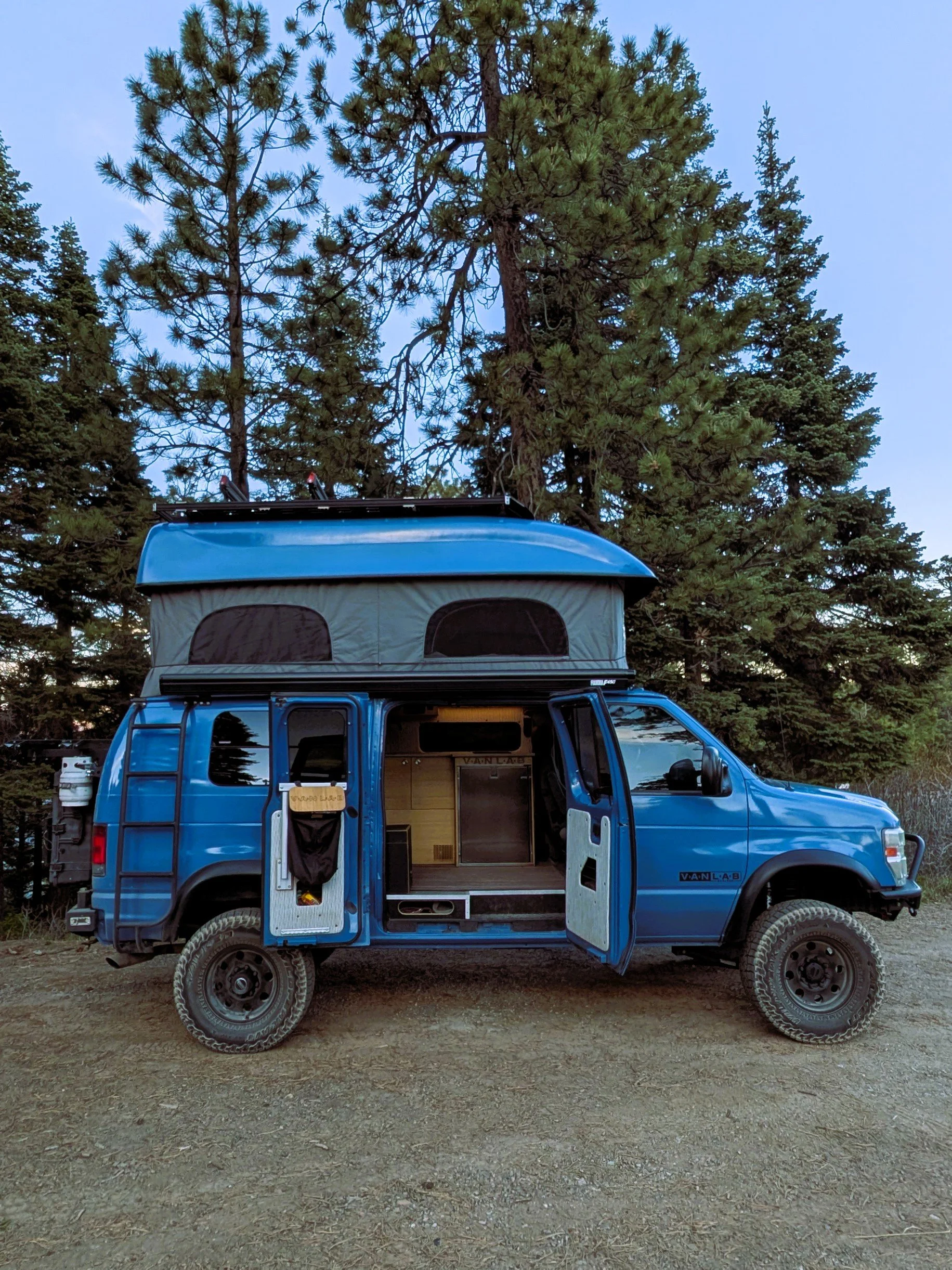

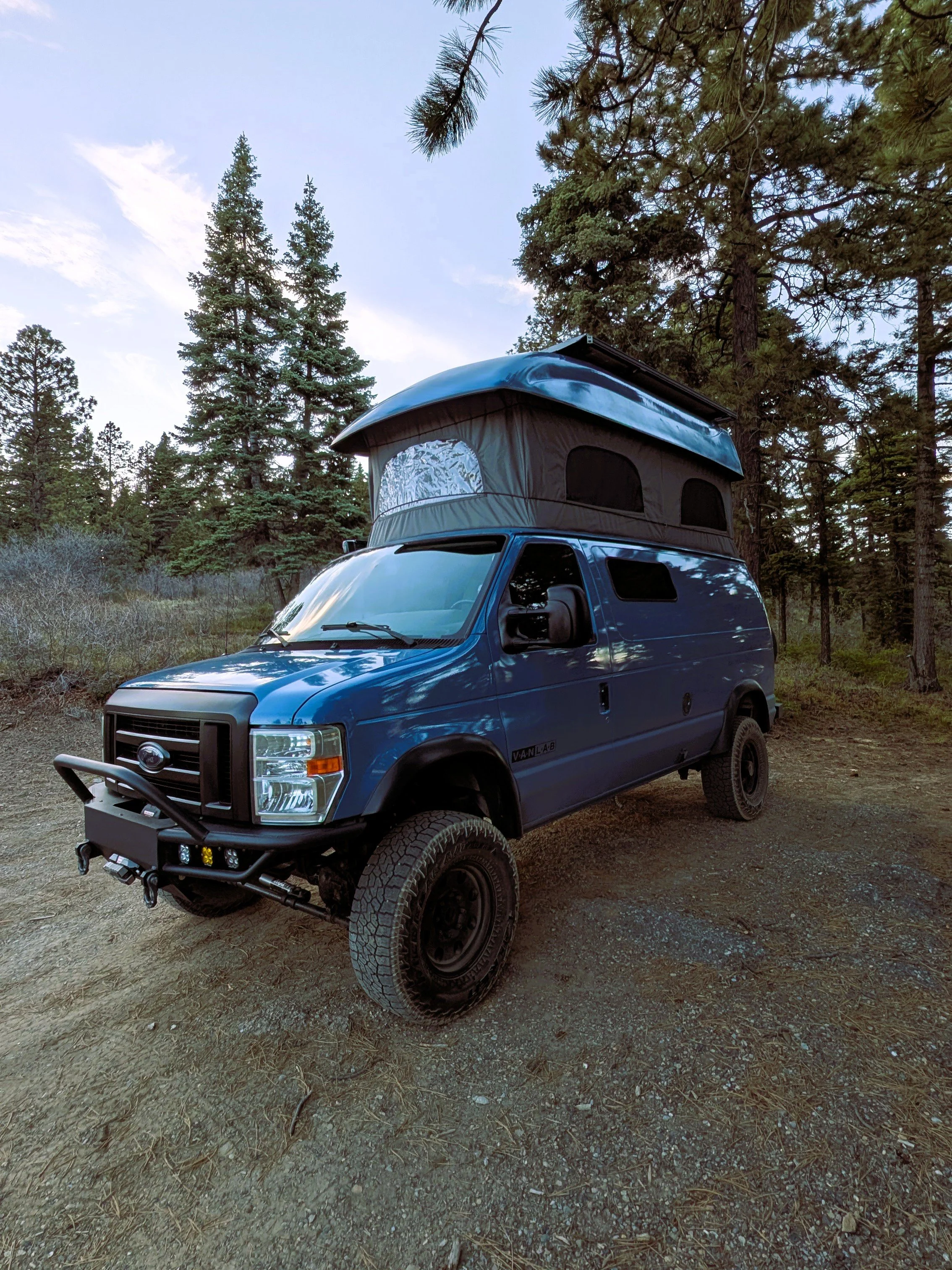

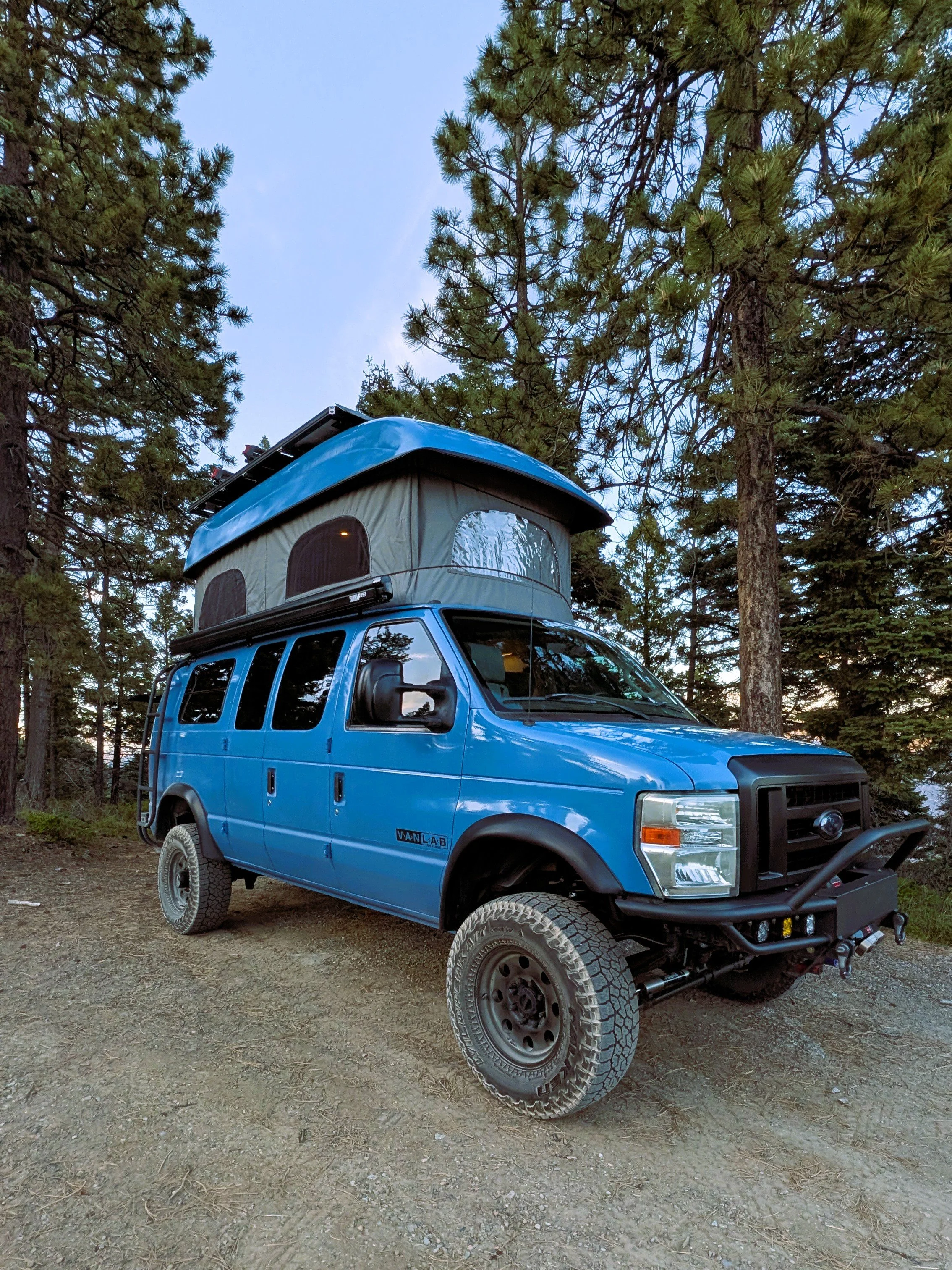

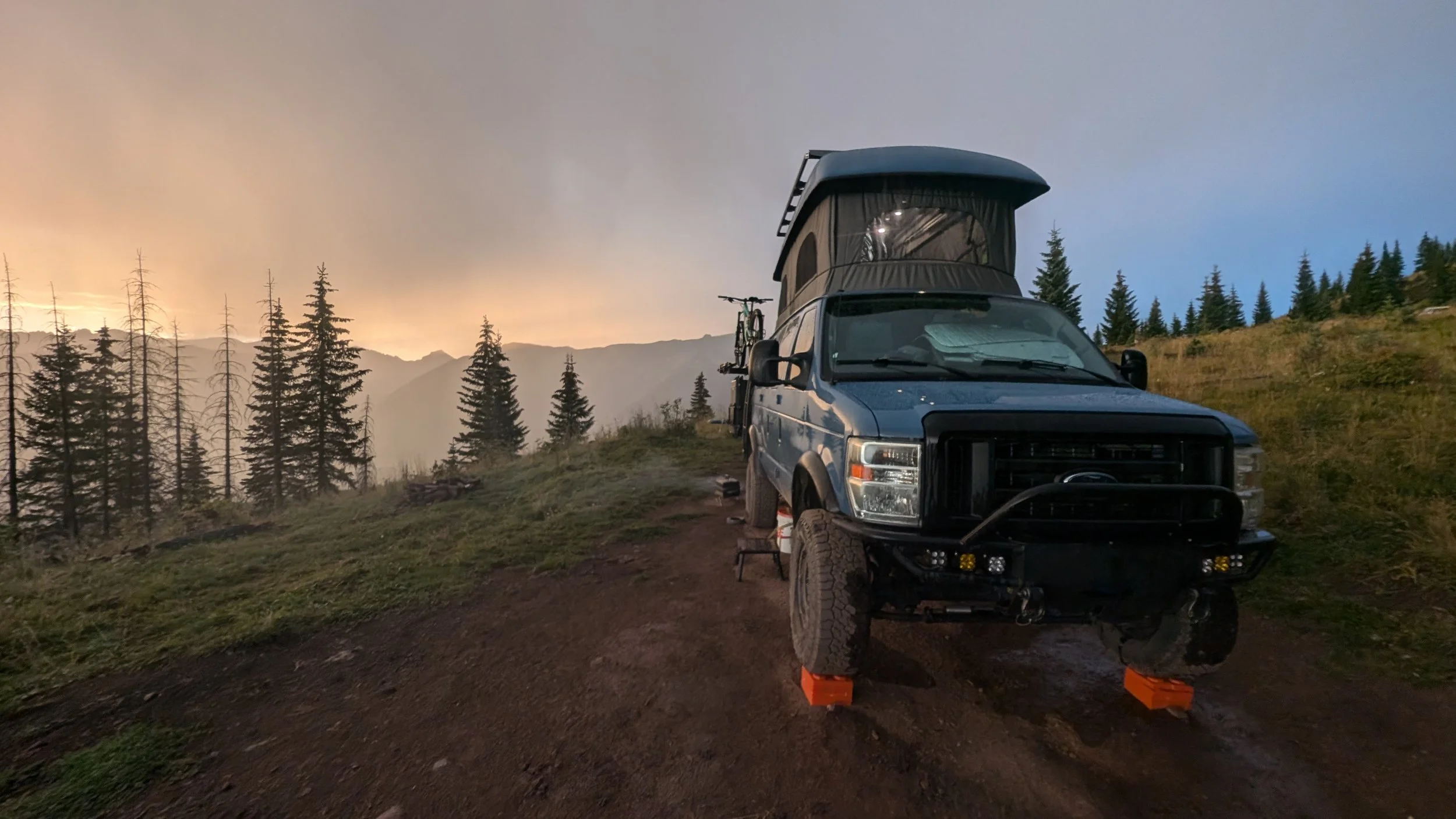

• Custom Pop-Top from a Fiberine 20" Aero Top - Goes up about 24" so you can sit upright in the top bed. It's about 68" standup height when the top is down.

• Secondary (removeable) interior insulation for the pop-top canvas.

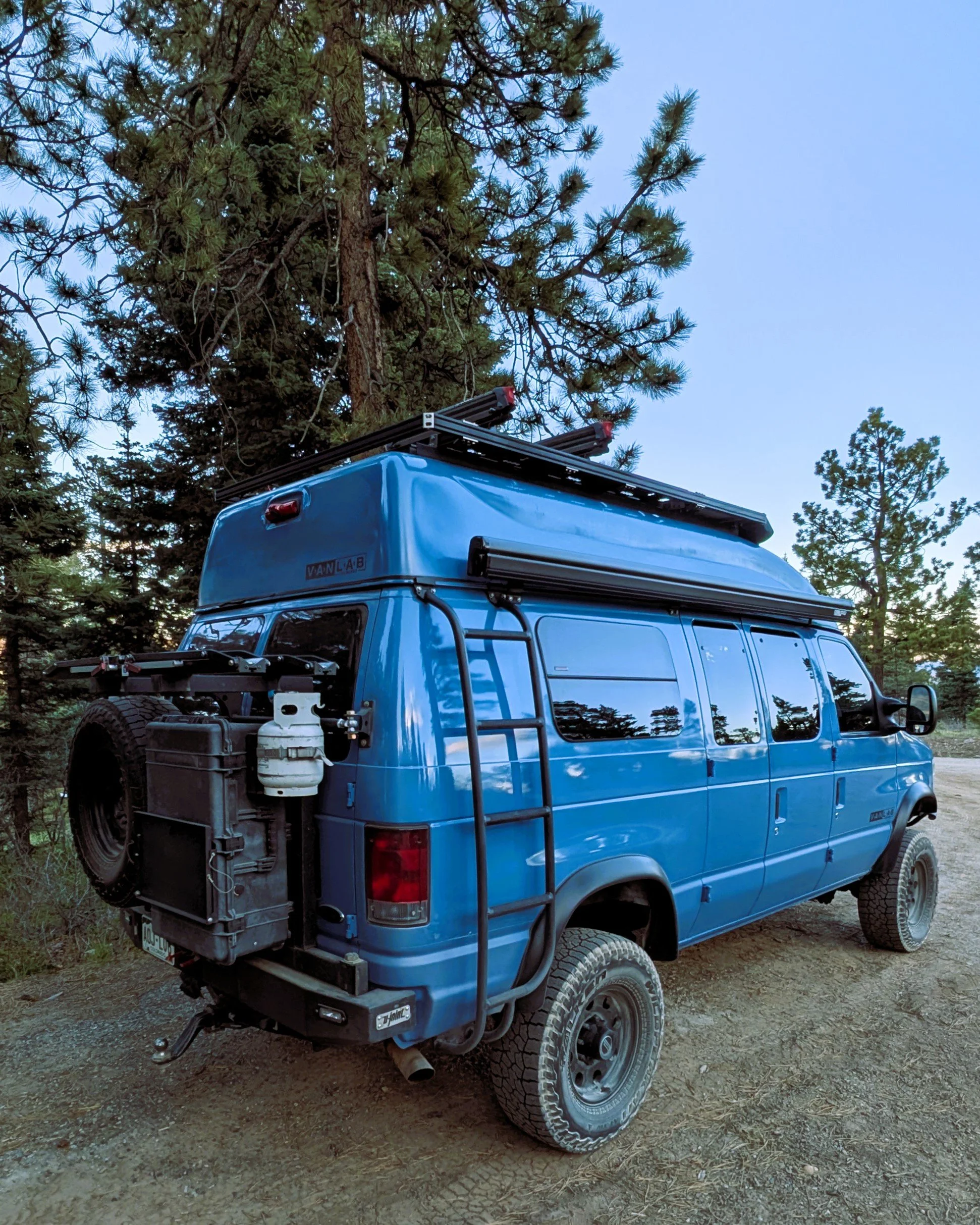

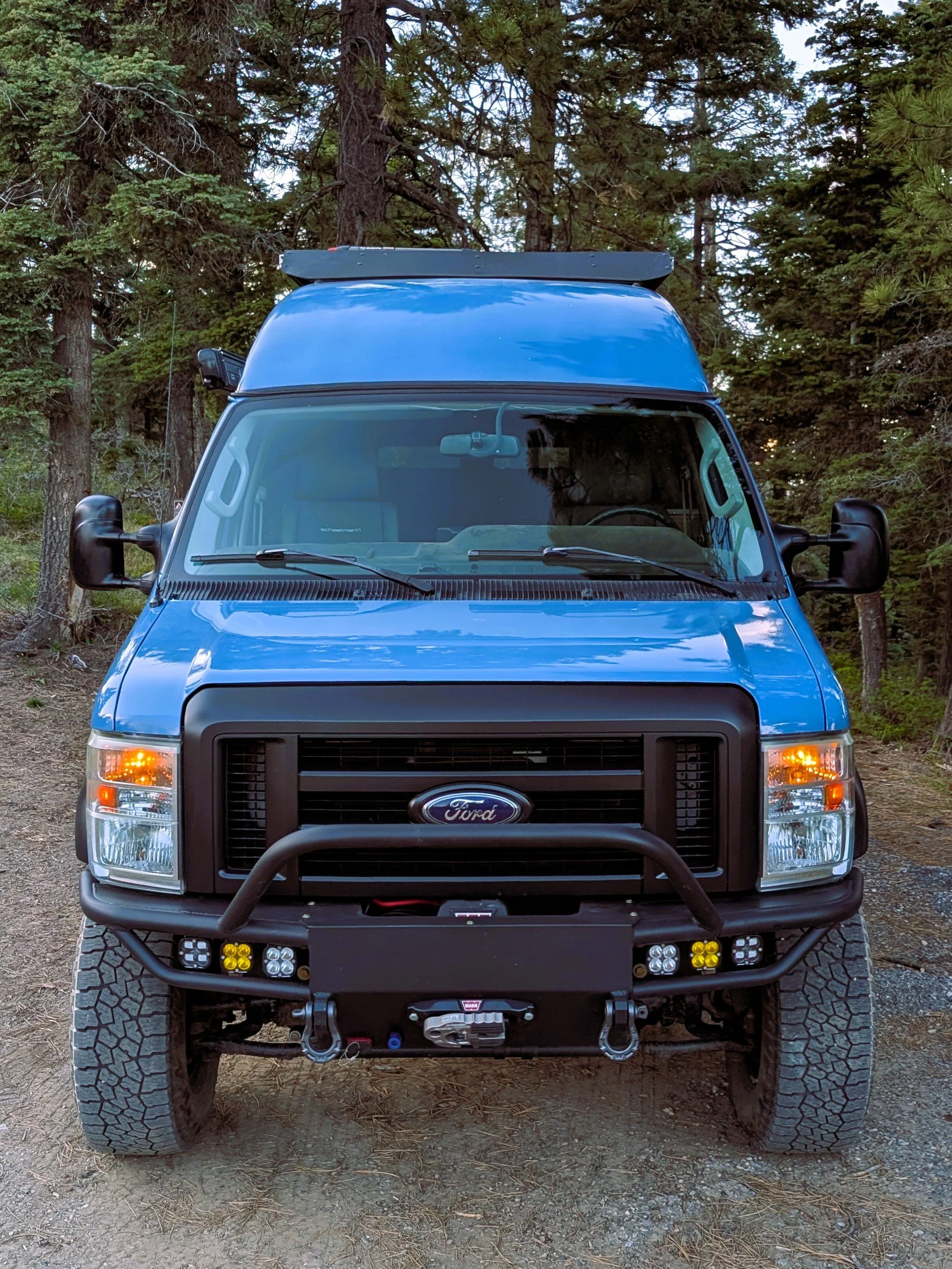

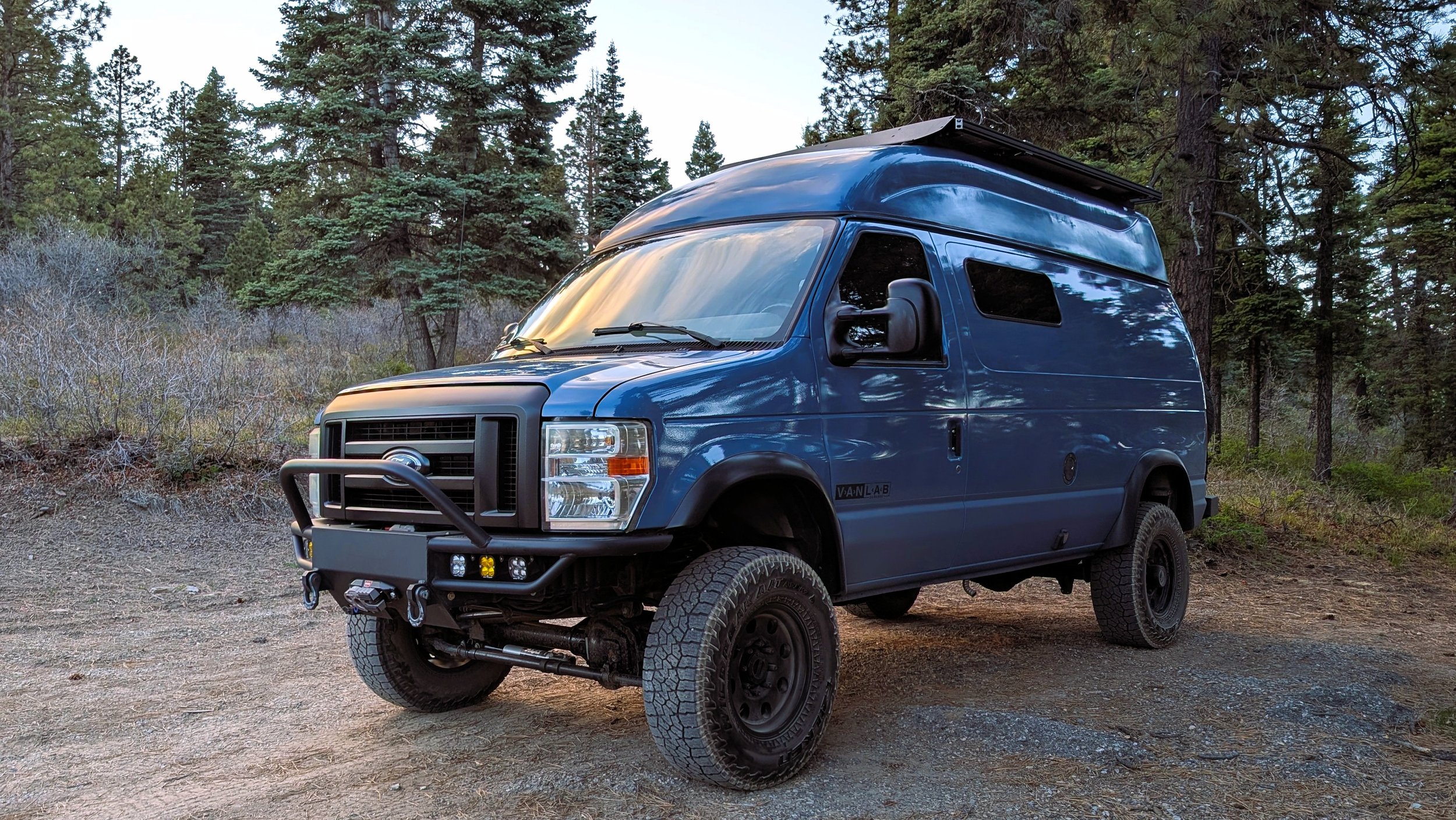

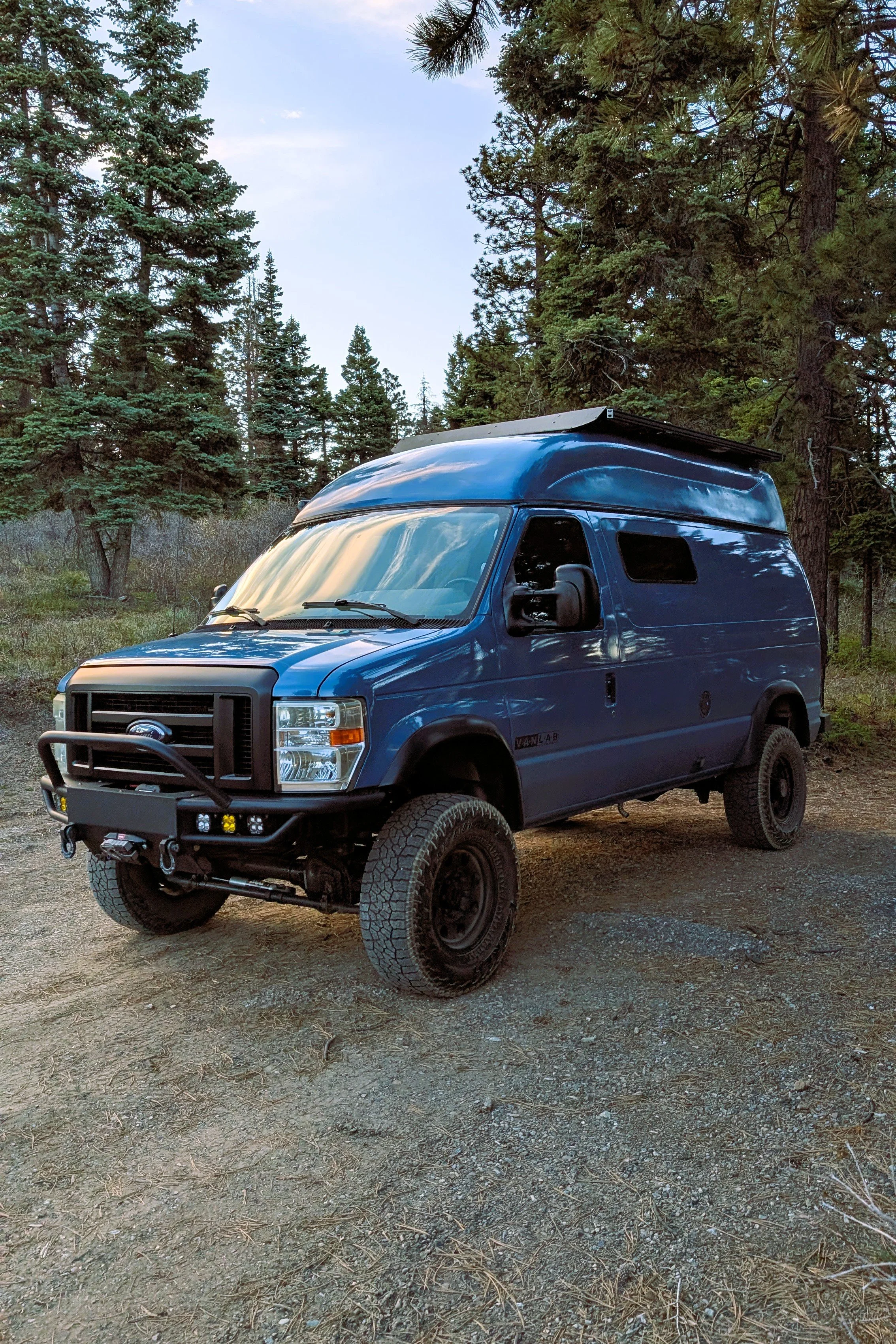

• Ujoint Off-Road front and rear Bumpers with a modified rear swing out for 2 1Up bike trays above the storage box. 5 lbs propane tank mount and Aluminess flip table.

• Aluminess Side Ladder

• Warn Winch with synthetic line.

• Baja Designs Lights - Spot clear, Amber driving/combo, and SAE clear Driving Fog

• ARB Twin Compressor run to front and rear bumpers.

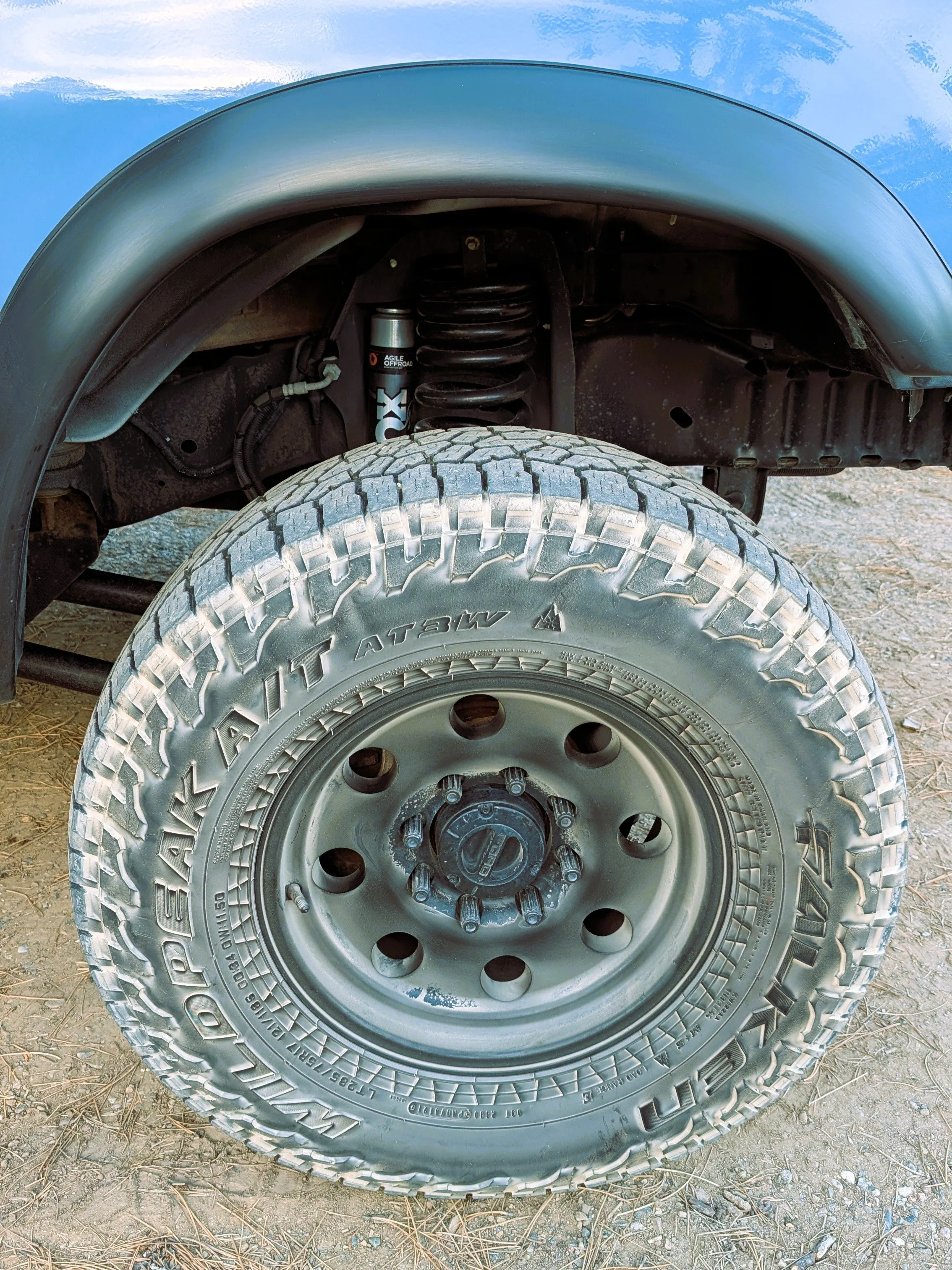

• Falken Wildpeak AT3W tires - 285/75/17 (Basically a 34x11.5)

• Full Size Spare tire

• American Racing Wheels

• Fiamma 45S 300 Awning

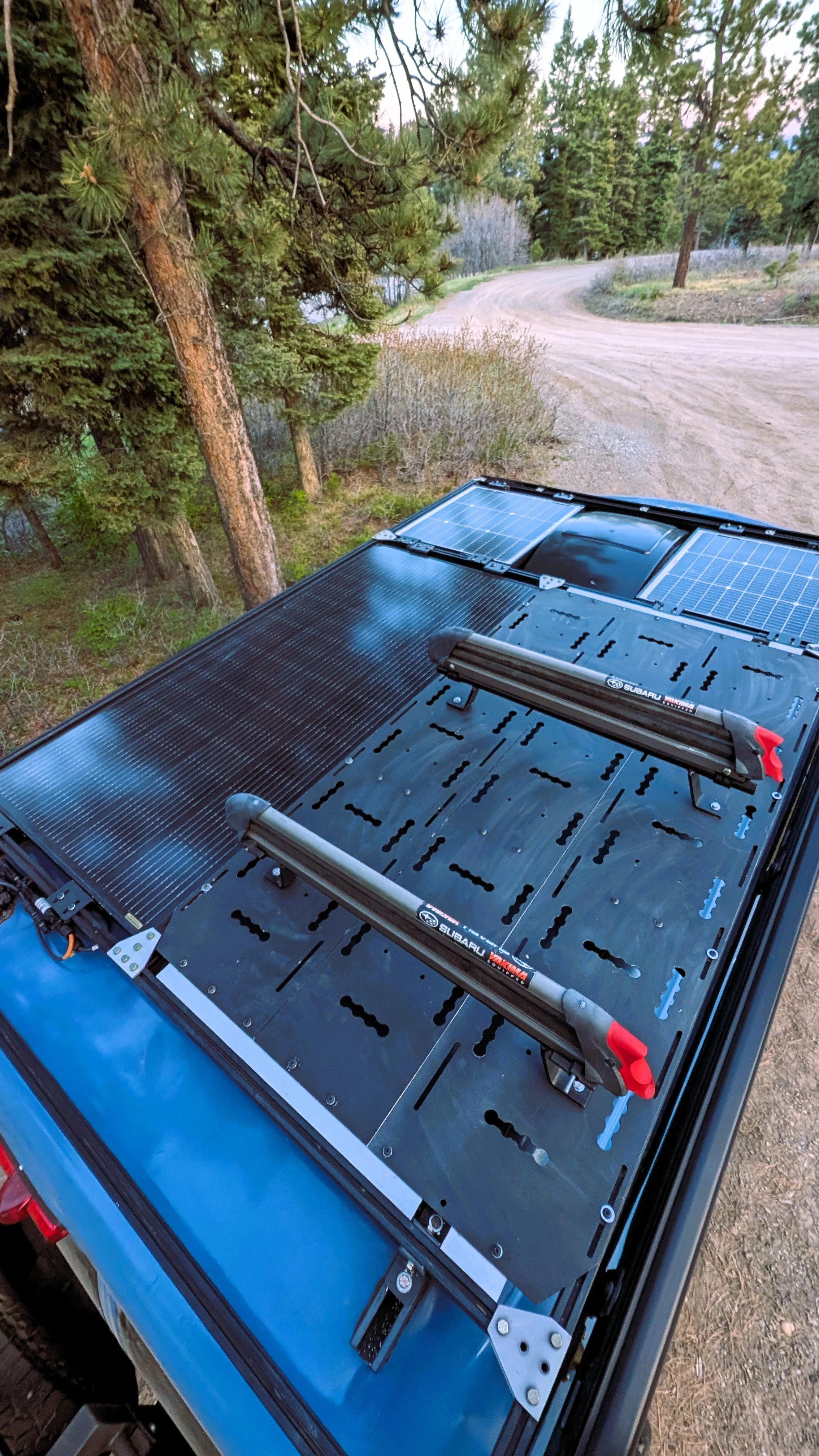

• Extruded Aluminum Roof Rack - 96" x 60" Most of it is flush mounted solar with a 60" x 30" flat platform with L-Track cutouts right above the ladder.

• Tow/Brake Controller

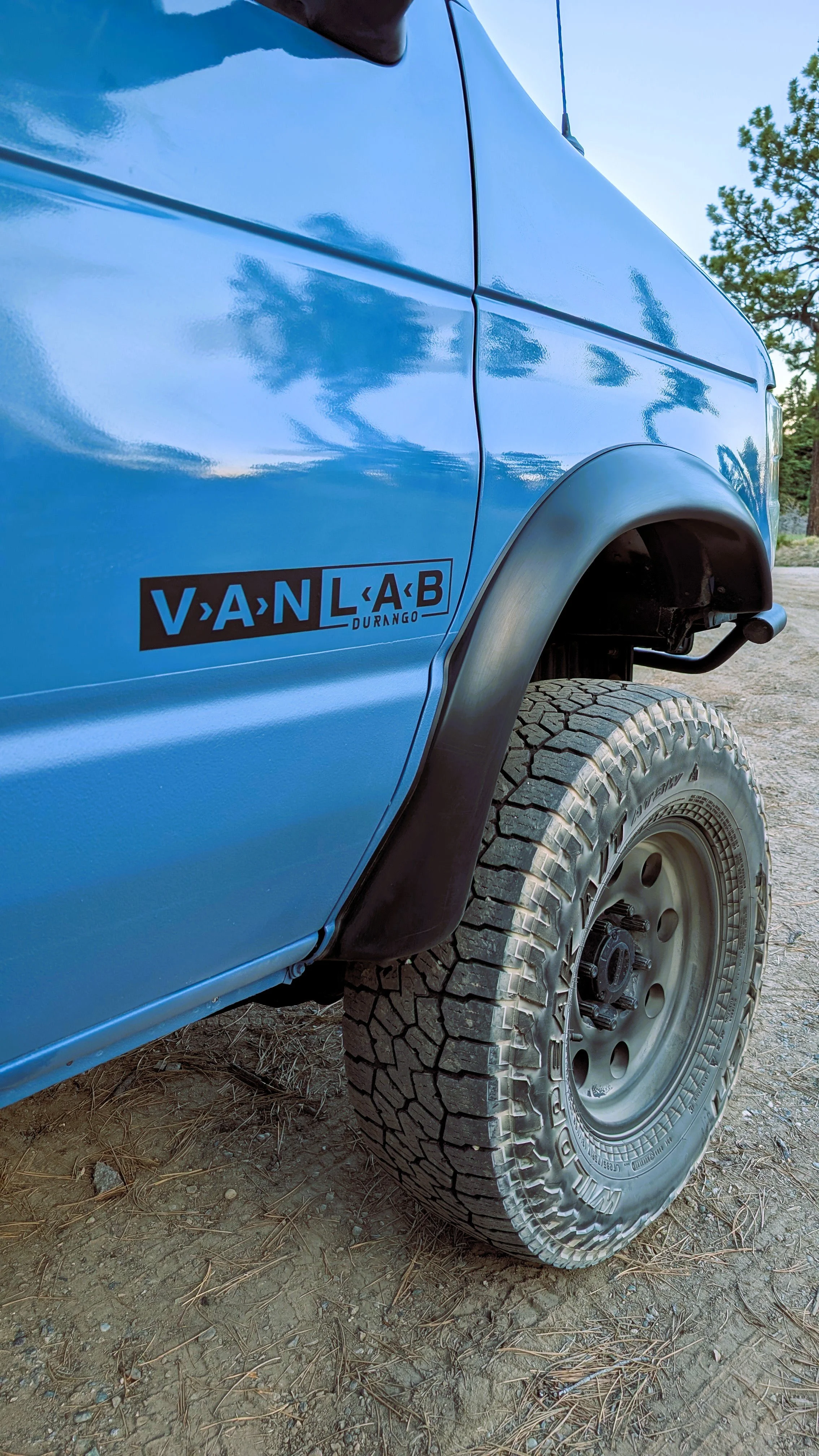

• Bushwacher Fenders - Front was trimmed by 1.5" pie cut and welded - so you could fit a 35" tire if you wanted.

• 4.10 Gears

• Dual catback exhaust - Sounds really good

Interior Build:

• Fully sound deadened and insulated with Thinsulate Insulation.

• Phifertex upholstered wall panels with a bamboo ceiling panel - This is the same material rafting gear is made from, super durable and easy to clean.

• L-track in the ceiling and misc. locations

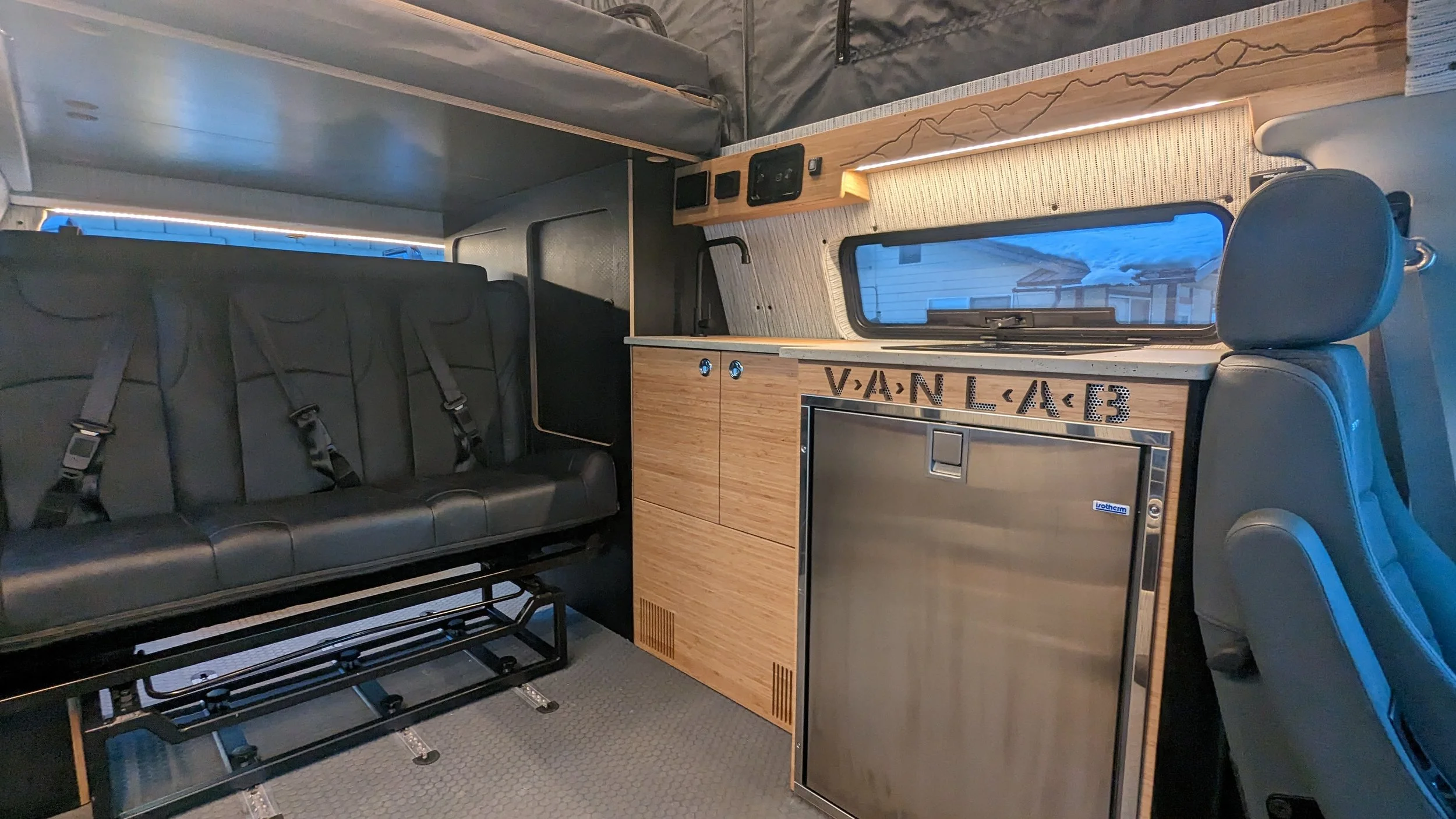

• Bamboo front Cabinetry

• Hex Ply Rear Cabinetry

• 3/4" custom Concrete Countertop - Our other business, CounterKULTURE Design Studio

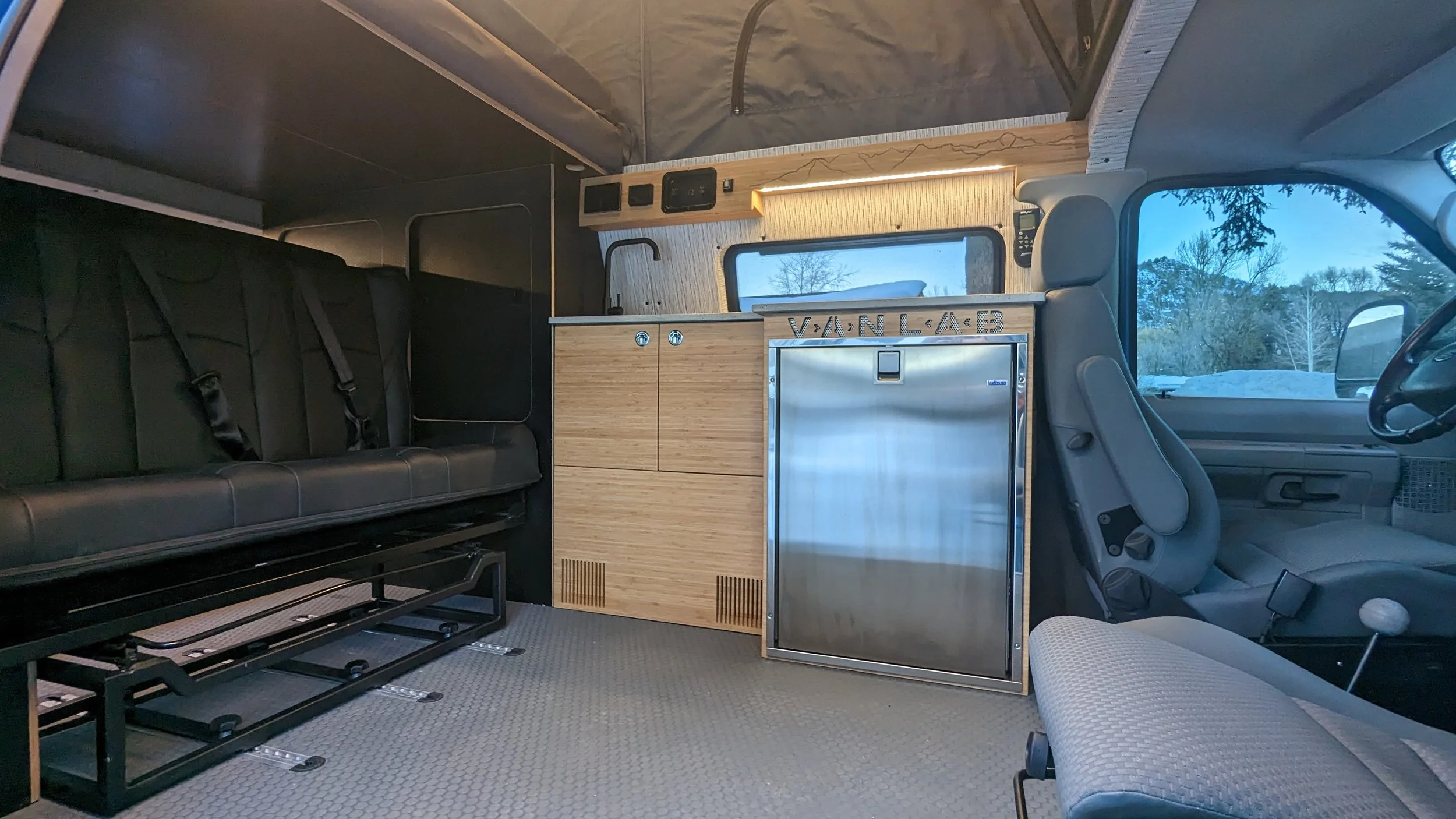

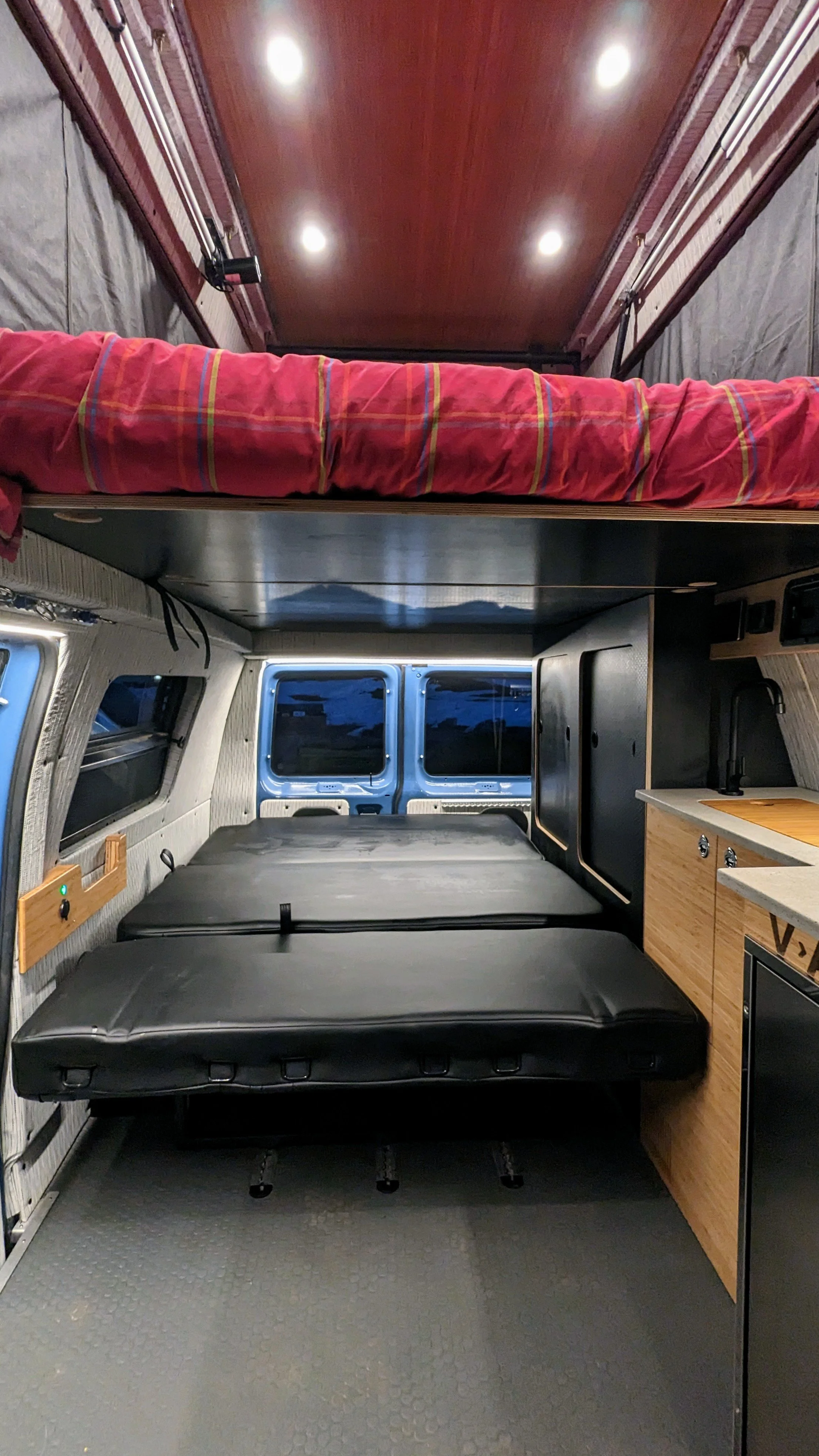

• Broad Arow three person seat that folds into a queen size bed. Child seat hooks, etc. Mounted in L-Track through the floor.

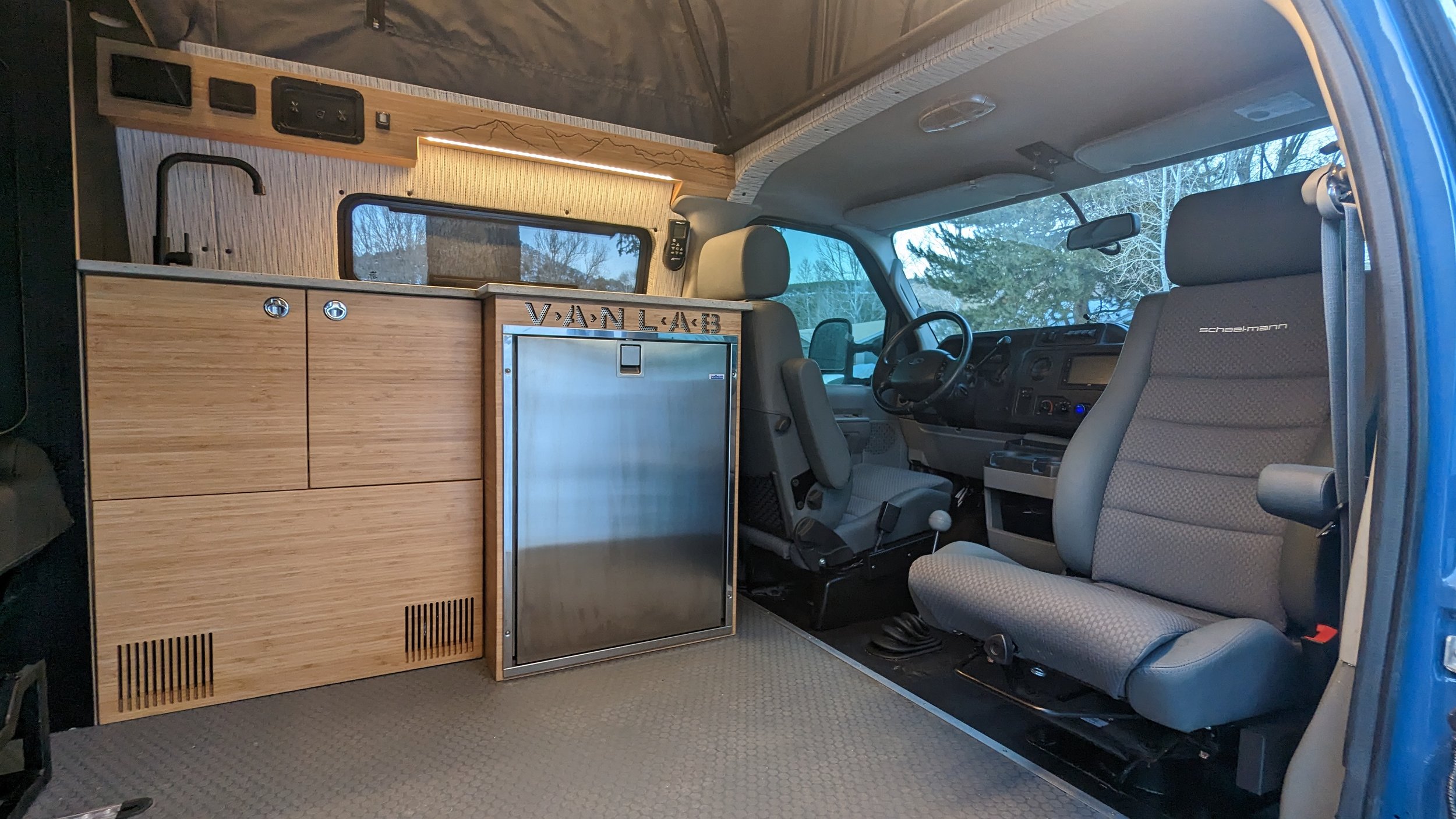

• Scheel Mann front seats - Passenger side swivel, both are heated.

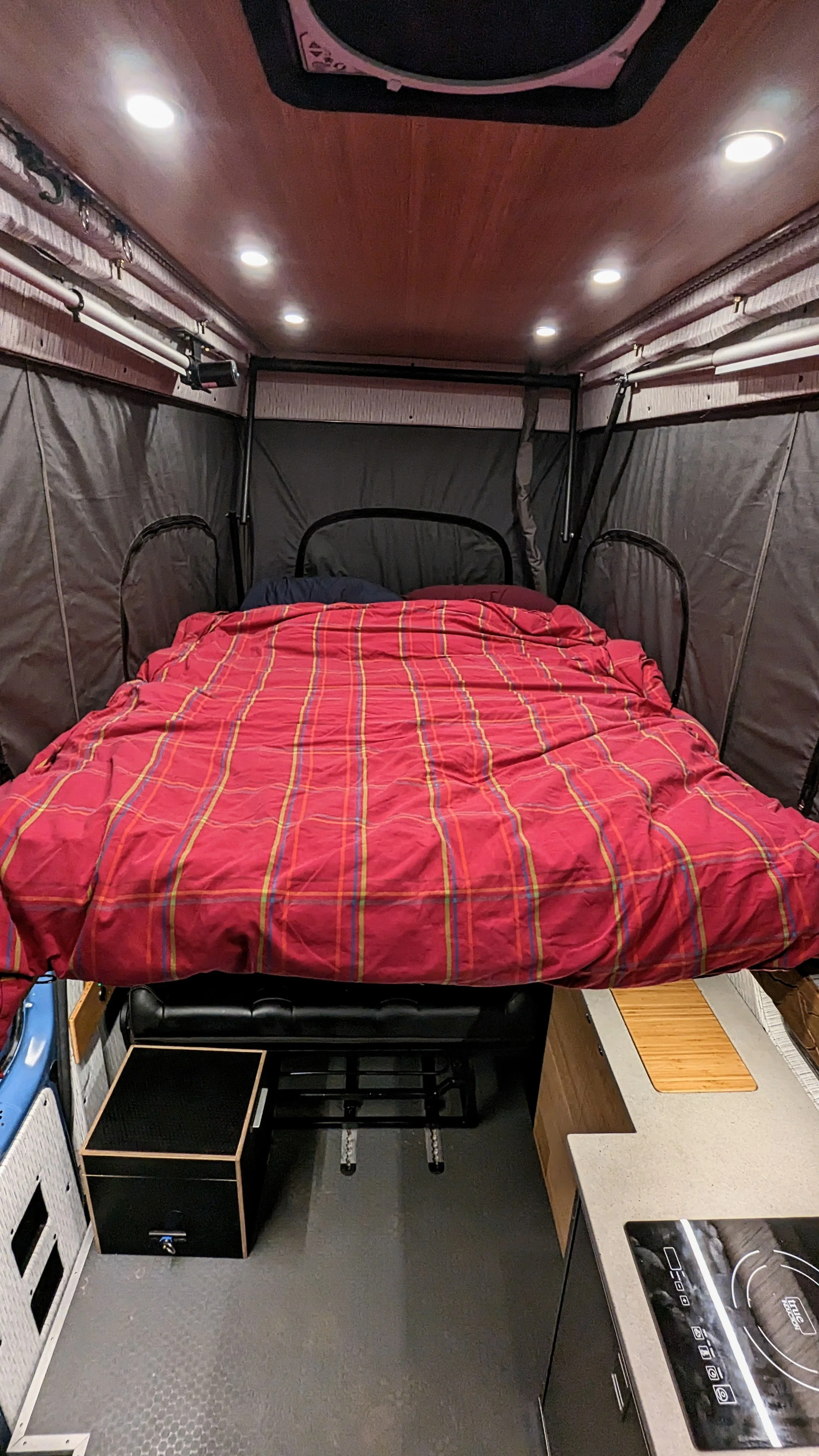

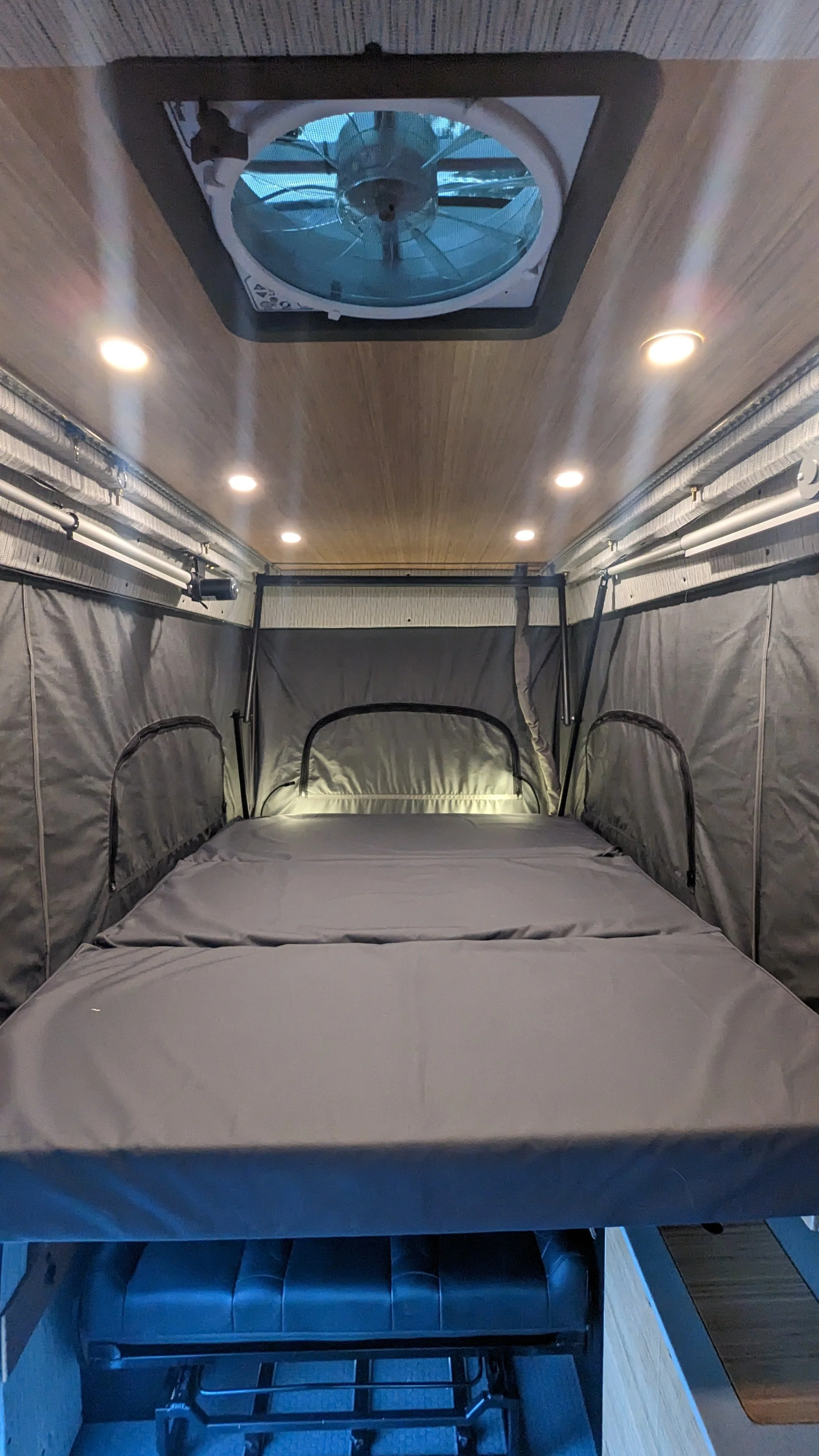

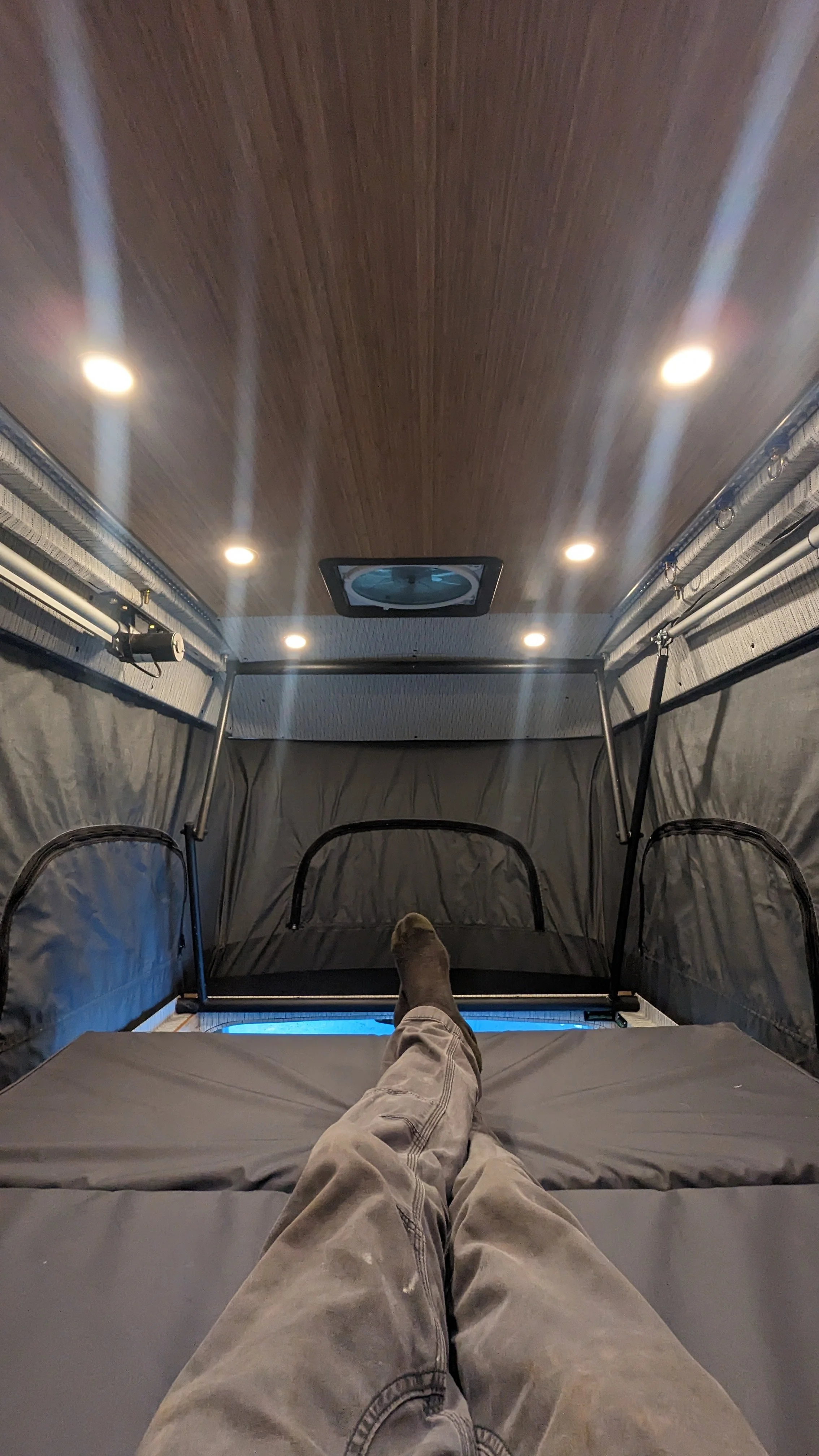

• 56" x 80" upper bed with a 5" Memory Foam Mattress.

• Removeable Insulation package for pop-top canvas. There's 6 windows in the canvas and 4 in the insulation package. The sides are all no-see-um mesh and the front two are clear vinyl .

• Lagun Table Mount

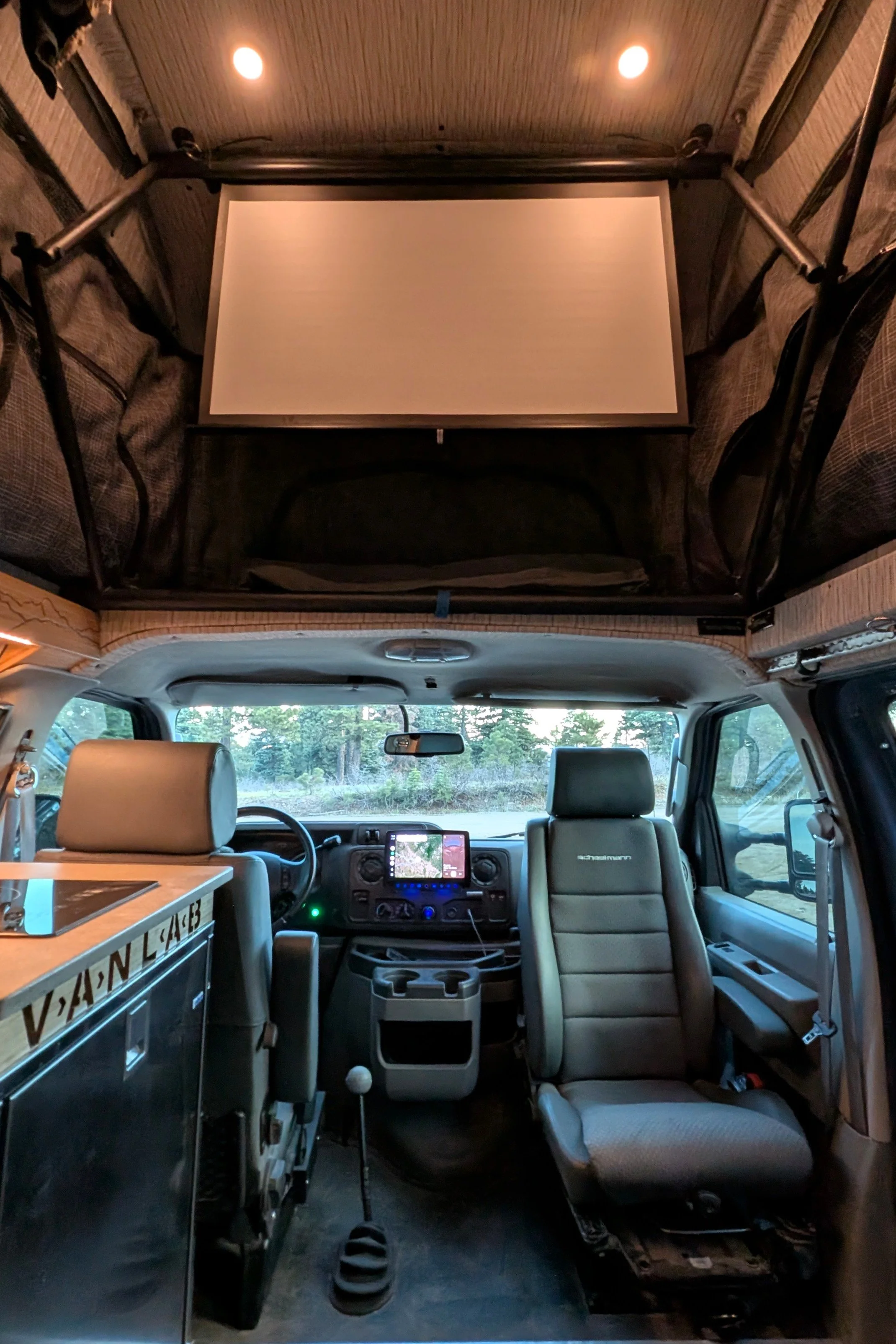

• Projector Screen and magnetic mount - It's dope

• Upgraded speakers and Boss 10" floating head unit with wireless Android Auto/Apple Carply

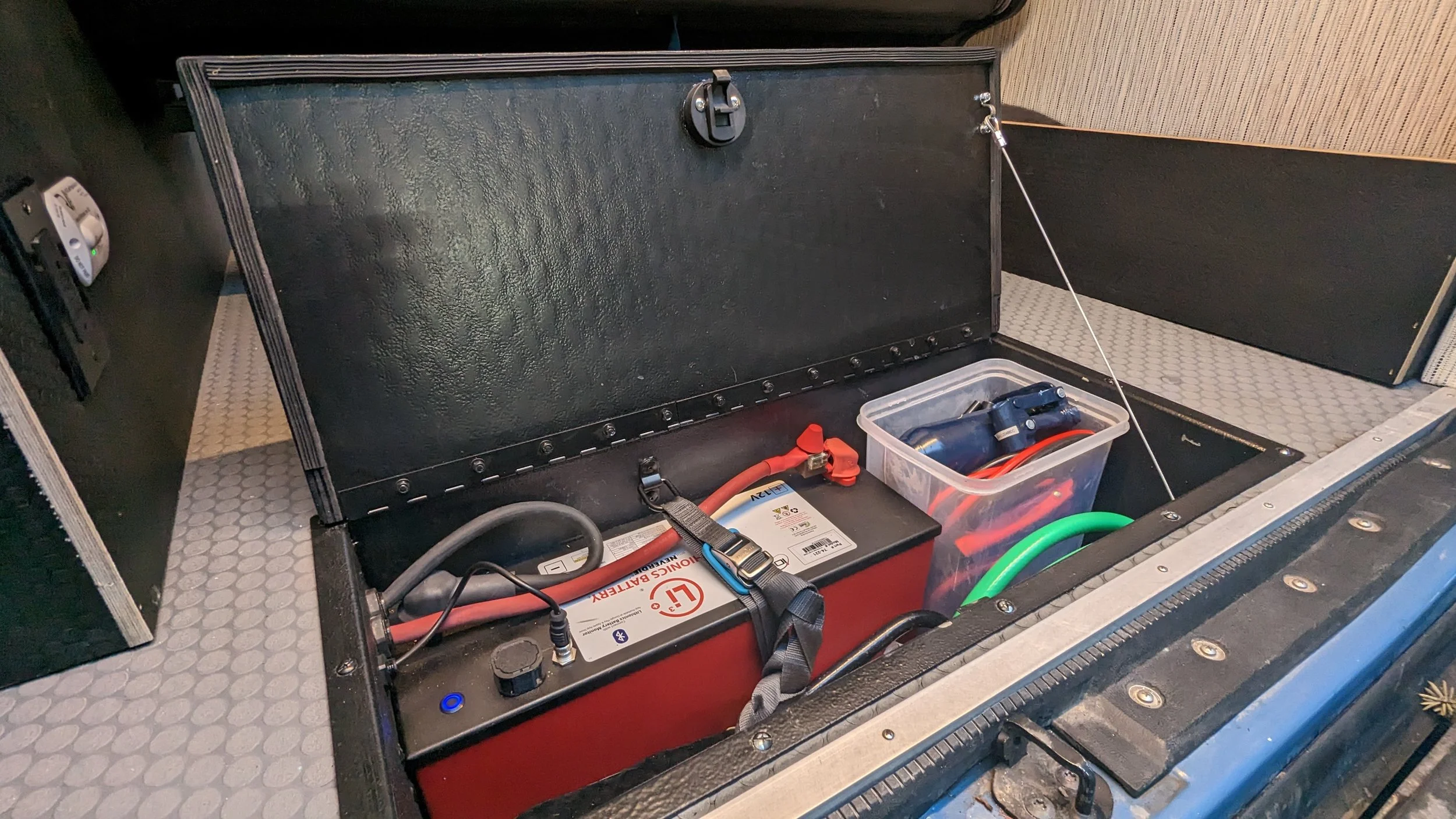

• Drop in rear storage compartment for battery, recovery gear, etc.

Systems/Ammenities:

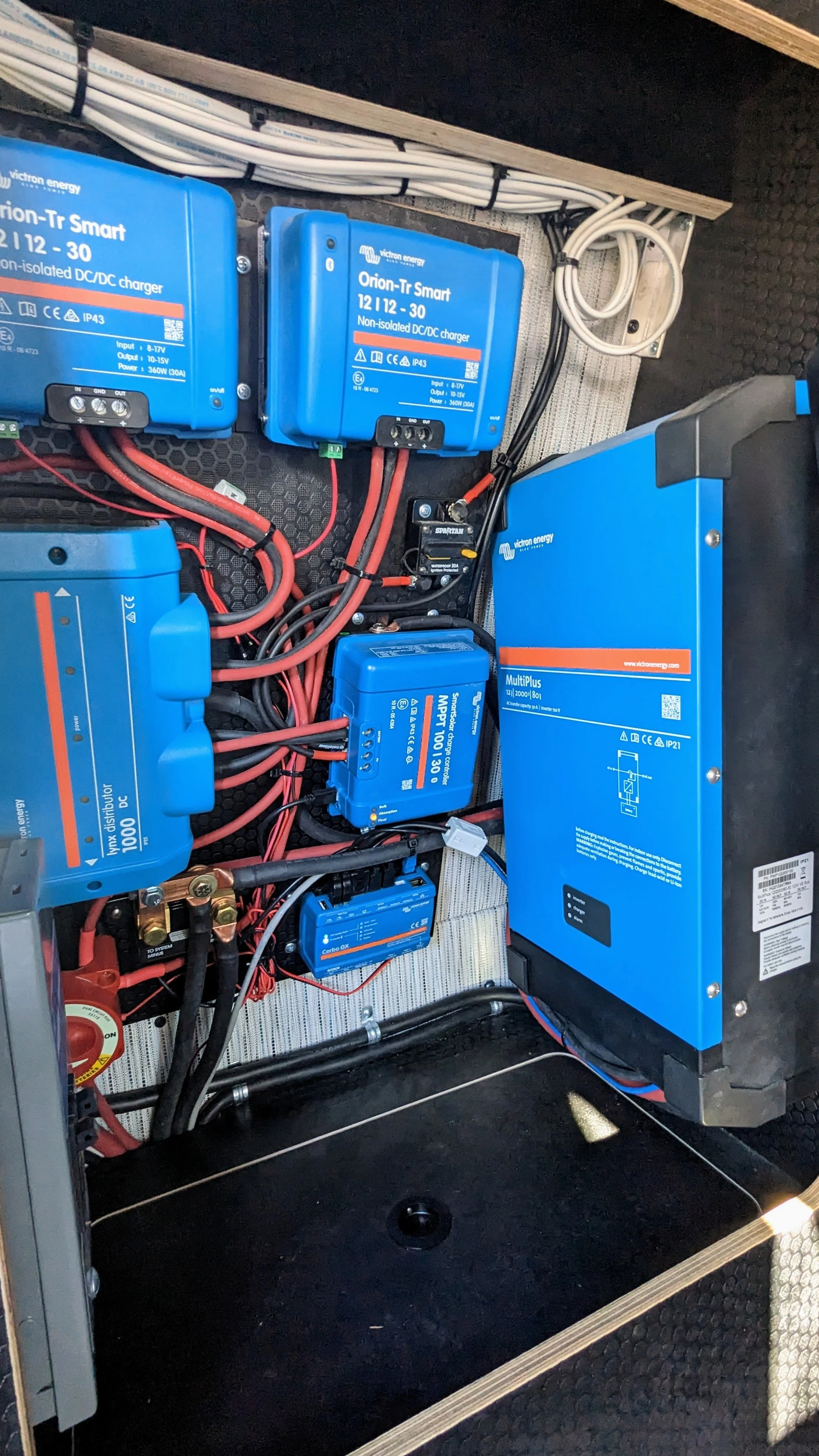

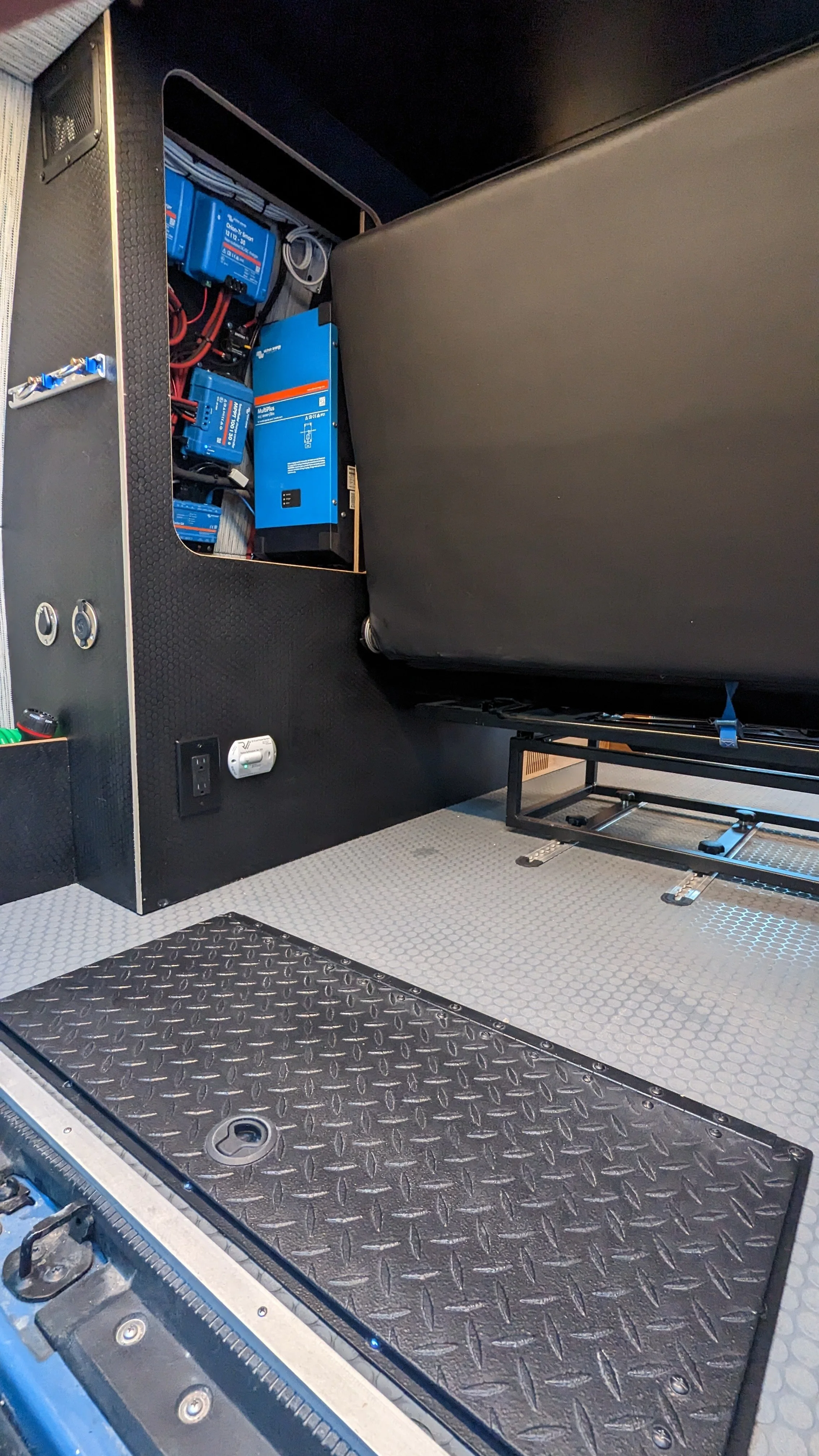

• Victron Electrical System - Dual 30 amp alternator chargers, Cerbo, 300 watts of solar, 2000 watt inverter/charger, shore power connection.

• Master shut off switch with "jump start" connection to starting battery

• Lithionics 320 amp hour heated battery with Victron Comms

• Single Burner Induction Cooktop

• 24 gallon fresh water system and 5 gallon grey water system with motorized ball valves and tank monitoring to the Cerbo display

• 15" x 10" sink

• Rear Spray/Shower port.

• Dimmable lighting throughout.

• Gasoline fired 4kW heater.

• Maxx-Air 7500k fan

• Trelino Separator Toilet in removeable "foot rest" box.

Priced at $138,000

Contact Gavin@Vanlabdurango.com for details and inquires
